1 Topic by shredder05 (edited by shredder05 2013-12-02 03:47:41)

Topic: Suggestion - Ability to set window size to specified pixel heightwidth

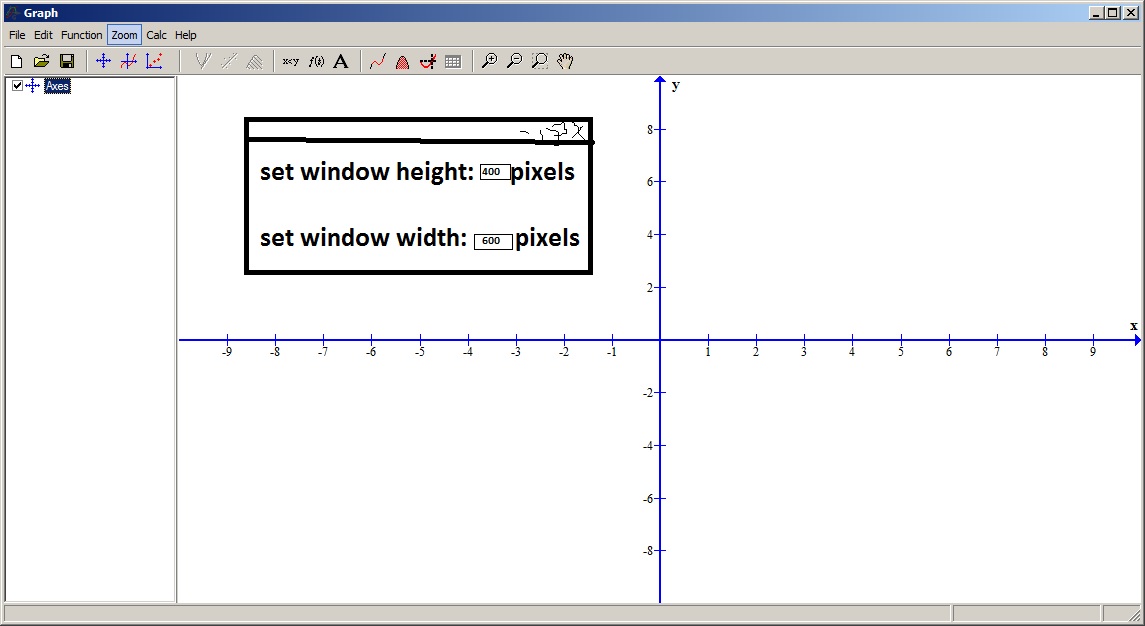

Here's my suggestion in picture form:

Just because sometimes I want to take a screenshot, and there's no way to save the size of the actual Graph window itself. The window size is just whatever the last size was.

Thanks

Post's attachments

Attachment icon window.jpg 85.3 kb, 429 downloads since 2013-12-02

Re: Suggestion - Ability to set window size to specified pixel heightwidth

Here is a trick:
If you install Python 3.2 (32 bit) from http://www.python.org/ftp/python/3.2.5/python-3.2.5.msi you will be able to press F11 inside Graph to get a Python console. In the Python console you can write:

Graph.Form1.Width=600
Graph.Form1.Height=400

3 Reply by frame_of_mind (edited by frame_of_mind 2014-09-16 04:14:47)

Re: Suggestion - Ability to set window size to specified pixel heightwidth

Is there a way to set the dimensions of the graph area only and not the whole window? I want to control the dimensions of the output image. Thanks.

4 Reply by frame_of_mind (edited by frame_of_mind 2014-09-16 04:20:17)

Re: Suggestion - Ability to set window size to specified pixel heightwidth

Figured it out. This is what worked for me. If you want the output image to be exactly x by y pixels then type:

Graph.Form1.Width=x+180
Graph.Form1.Height=y+112

Sometimes the palette splits into multiple lines. You will have to add 28 pixels to the height for every additional line forced by the palette.

Edit: I also just found that you can adjust the image dimensions in the "Save As..." dialog box. However, if you want to adjust the window then you have to use the Python commands.
